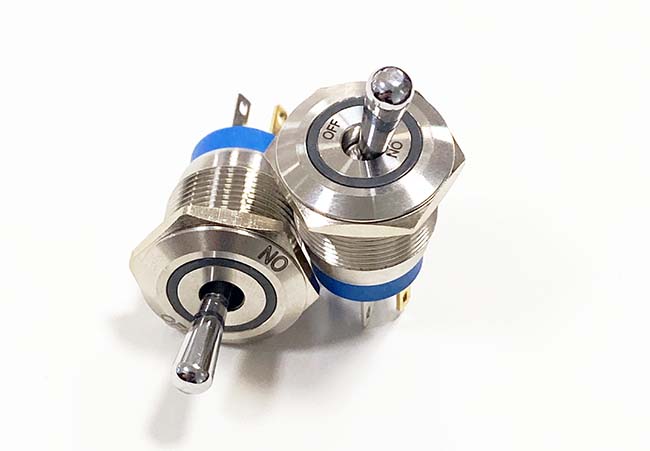

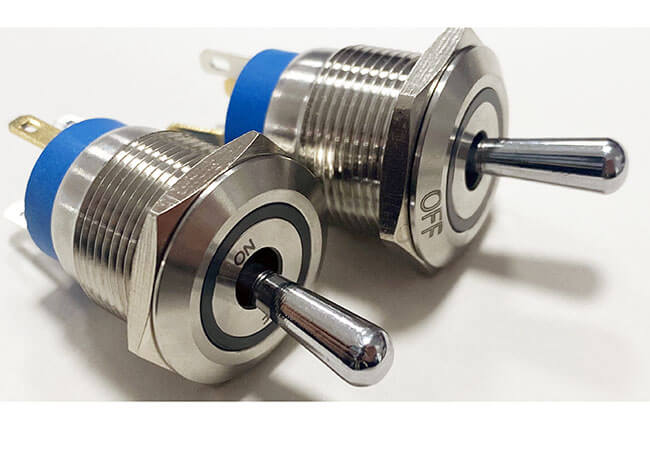

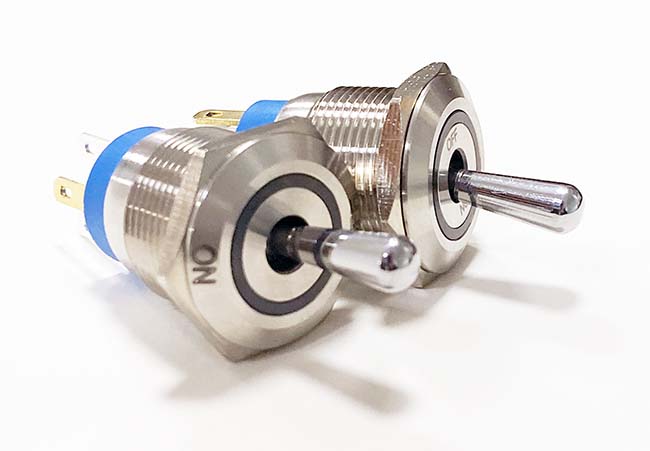

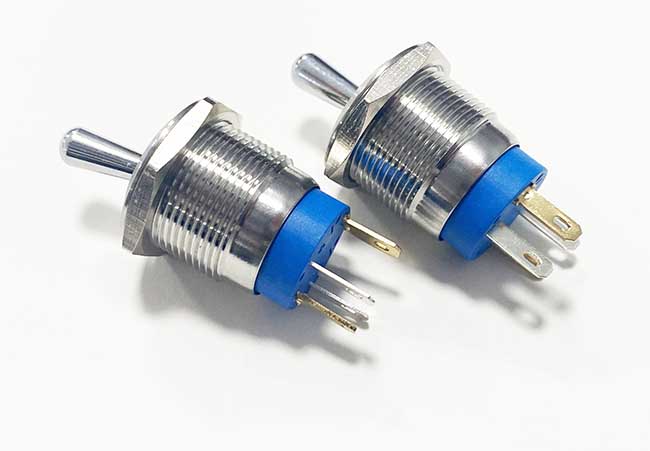

19mm On Off Toggle Switch Characterestics
Model: LTS19
- Widely used in many application like CNC lathes, medical equipment, car dashboards, battery car modification
- Thickened metal shell, real material
- Fireproof and waterproof, safe protection, safe to use
- Stable performance, low resistance
- Soft light, not dazzling
- Datasheet
| Type | LTS19 |
| Actuator options | Flat |
| Terminal | Solder(2.8×0.5mm) |
| Max. switch rating | 2A 48VDC |
| Contact resistance | ≤50m Ω |
| Insulation resistance | ≥1000m Ω |
| Dielectric strength | 2000vac |
| Operation temp | -20°C~+55°C |
| Mechanical life | 1,000,000 cycles |
| Electrical life | 200,000 cycles |
| Contact material | Silver alloy |
| Torque | 5-14Nm |
| Operation pressure | Approx. 5N |
| Protection | IP67/IK09 |
| Material | |
| Actuator | Stainless steel |
| Body | Stainless steel |
| Base | PBT |
19mm Toggle Switch Factory Price

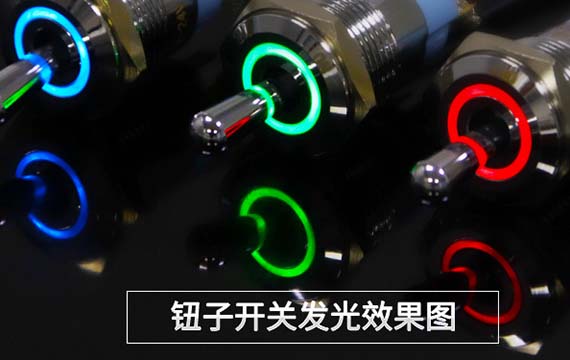

- LED infinite double chip
- LED low power consumption 20mA
- Conventional products with lights have built-in resistors and can be used directly.
- Special voltage requires an external resistor
- Material customization

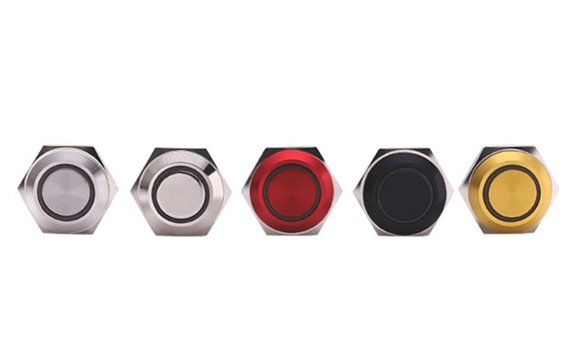

19mm Toggle Switch Different Materials
- Nickel plated brass: mirror effect, economical and practical, waterproof and dustproof
- Stainless steel: CD pattern effect, harder, better waterproof, dustproof and rustproof
- Zinc-alloyed: Non-ferrous metal texture, can do different colors
