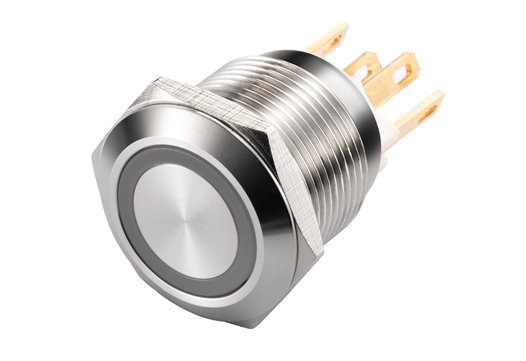

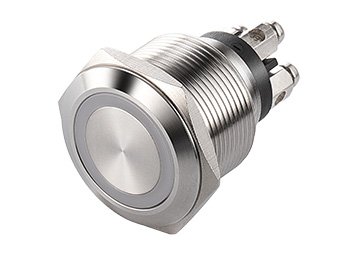

L19M Series Micro-trip Anti Vandal Switch
- 1NO momentary switch
- 19mm diameter panel cutout
- Anti-Vandal IK09/ Sealed IP65
- Dot and ring illumination available
- Contact material: silver alloy reaching 87%
- Terminals: copper alloy for good conductivity
- Technical Data

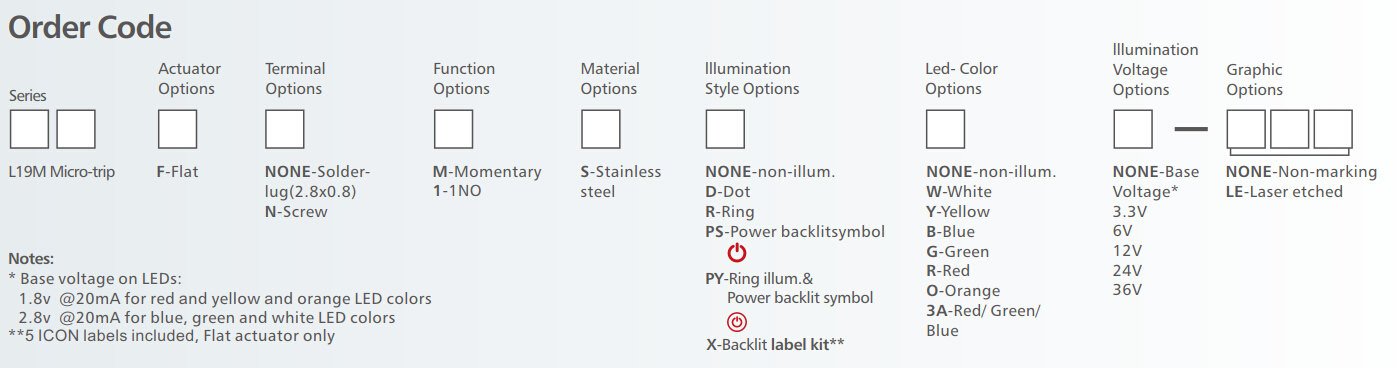

- Order Code

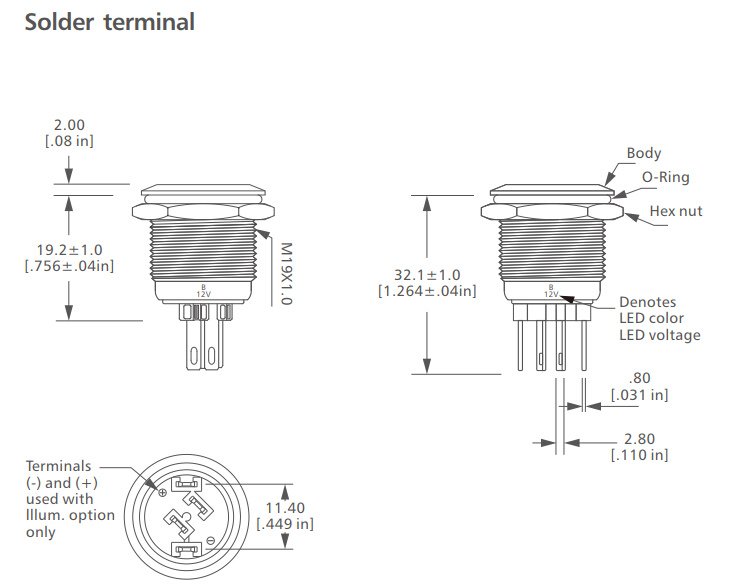

- Drawing
- Download
| Type | L19M-F | ||
| Illuminated options | Non-illuminated/Ring illuminated/Dot illuminated | ||
| Terminal | Solder lug(2.8*0.8) | ||
| Max.switch rating | 50mA 24VDC | ||
| Contact resistance | ≤100mΩ | ||
| Insulation resistance | ≥1000mΩ | ||
| Dielectric strength | 2000VAC | ||
| Operation temp | ·－20℃～＋55℃ | ||
| Mechanical life | 1,000，000 cycles | ||
| Electiical life | 50，000cycles | ||
| Contact material | Silver alloy | ||
| Torque | 0.57Nm | ||
| Operation pressure | Approx.8N | ||
| Protection | IP65/IK09 | ||
| Material | |||
| Switch asembly | UL94V-0 rated polyamide(nylon) | ||
| Tags | Copper alloy | ||
| Terminals | Copper alloy | ||
| Switch body&button | Stainless steel/Anodized aluminum | ||
| Lens and lens body | Polycarbonate | ||
| Internal seal | Silicone | ||
| O ring | Nitrile | ||
| Color | LED | ||
| 3.3V/6V/12V/24V/36V/110V/220V | |||
| Red Green Yellow Orange Blue White | |||
| Approx,40,000hours | |||

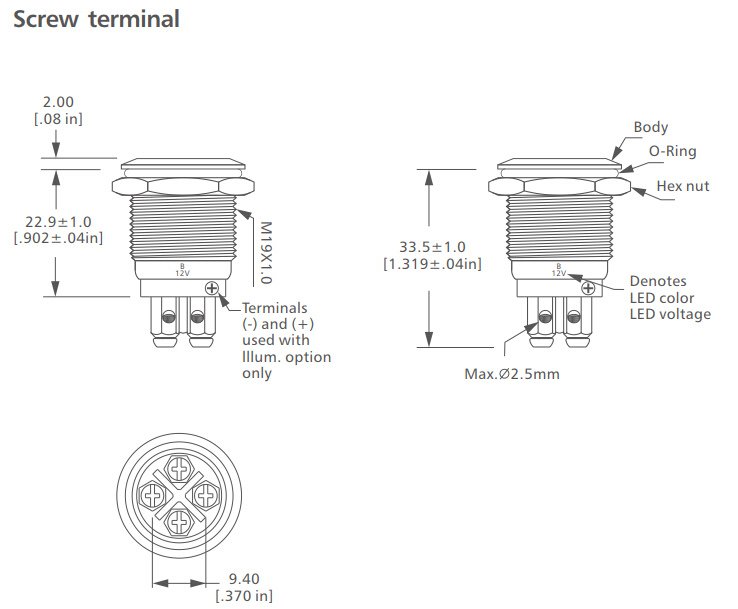

L19M Series base voltage Anti vandal switch drawing
L19M anti vandal switch E-catalogue, please download it below:
