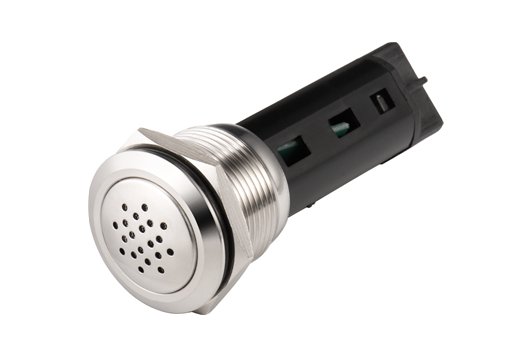

LF19 Series Stainless Steel Buzzer
- Sealed IP40
- Buzzer & Flicker buzzer
- Illuminated and Non-Illuminated
- 19mm diameter panel cutout
- Multiple illumination voltage options
- Multiple LED color options
- Technical Data

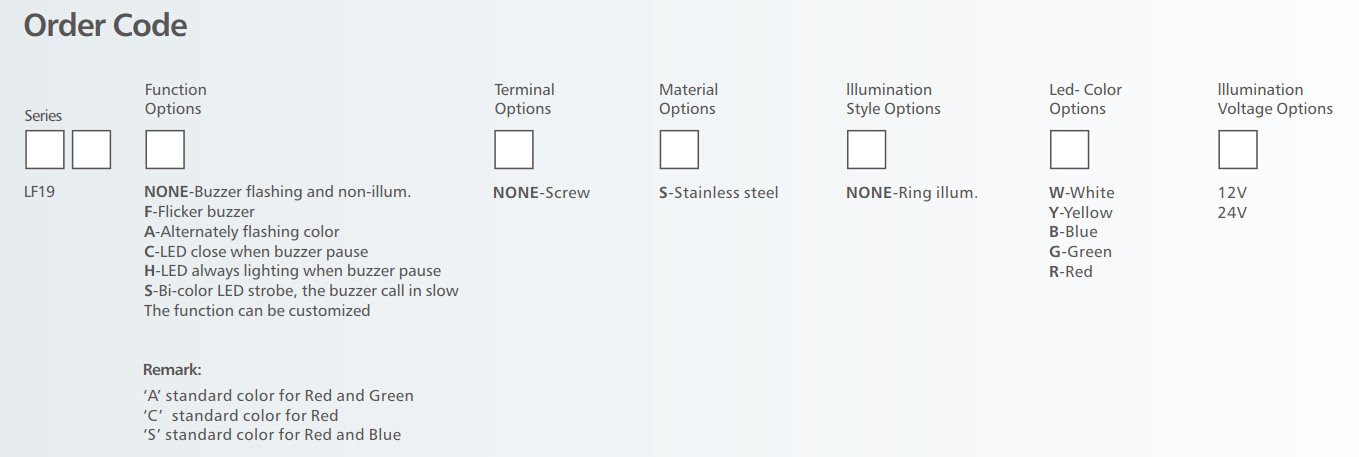

- Order Code

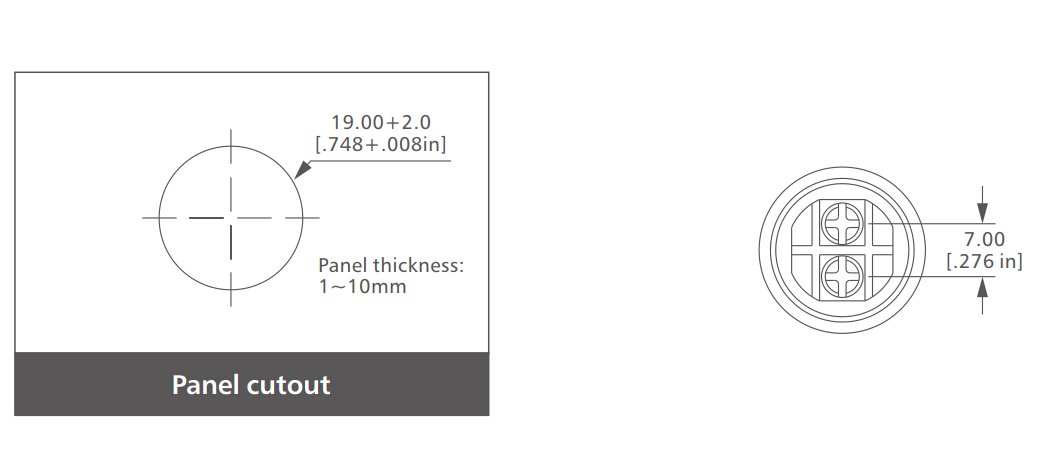

- Drawing
- Download
| Type | LF19 | LF19-F | |
| Function | Buzzer | Flicker buzzer | |
| Terminal | Screw | ||
| Max.switch rating | |||
| Contact resistance | |||
| Insulation resistance | |||
| Dielectric strength | 2000VAC | ||
| Operation temp | ·－20℃～＋55℃ | ||
| Mechanical life | |||
| Electiical life | |||
| Contact material | |||
| Torque | 5～14Nm | ||
| Operation pressure | |||
| Protection | IP40/IK04 | ||
| Material | |||
| Actuator | Stainless steel | ||
| Body | Stainless steel | ||
| Base | PA | ||
| Buzzer Spec. | |||
| Type | Buzzer | Flicker buzzer | |
| Voltage | DC12V/DC24V | ||
| Color | Red Green Yellow Blue White | ||
| Sound INTEN | ≥80dB(0.1m) | ||
LF19 buzzer E-catalogue, please download it below:
